Overview

With know-how and technical skills which has been accumulated since we entered concrete polishing in 2003, we will show SMP-1500, a new product featuring fast grinding, smooth polishing and high-gloss , which was produced through the process of research & development for 3 years.

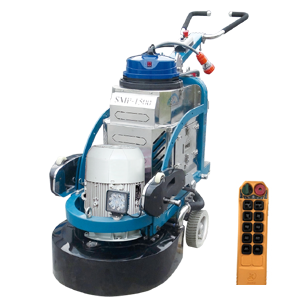

SMP-1500 is designed for large scale construction and used for grinding, surface preparation, polishing. With higher effectiveness, it can reach a range of sheen state easily equipped with SM metal tools and SM resin pads. Remote control or joystick is available as option. Also, you can choose 3-head or 4-head

BENEVIT

1. Weight Shifting System, Patented Technology

Conventional weight may cause a risk of injuries as users install or separate It and also frequently result in "leaning to one side effect" during equipment operation. The solution is Weight Shifting System. It shows two advantages. Firstly, there is no need to carry heavy weight so it can be more safe for users. The second one is to improve efficiency as weight is able to be fixed at your desired position depending on the condition of floor.

2. Wet / dry vacuum, Patented Technology

Combined with ceramic tools, installed dust container can function as a vacuum cleaner. You don't have to spend money buying extra vacuum cleaner. SMP-1500 can provide clean& healthy work-site as well as polish floor, if the amount of dust is not heavy. Also, dust container is designed to serve as a water tank during wet type work

3. Remote Control

High quality of remote control is equipped for convenience of users. Remote type can ensure flatness and consistent work so produce the best result. Also it can save labor cost and improve work efficiency. Joystick controller is available, too.

4. Electrical Lifting System

This system can adjust the height of abrasives timely during operation, which can ensure grinder's optimal operation capacity

5. Driving Wheel

In remote control or joystick mode, the speed of driving wheel can be controlled, which is displayed in the panel. Urethane rubber wheel does not leave tire marking and the machine can move on 45 degree angle slope.

SMP-1500R  Specification
Siemens Motor	Schneider Inverter	Voltage	Ampere	Work area	Dust/Water Tank	Weight	Dimension W*L*D	RPM
15HP	20HP	220V, 380V 440V, 480V	20~30A	780mm	15 liter	588 Kg	780*1350*1240	0 ~ 1200

Weight Shifting System		Integral Vacuum Cleaner		Remote Control
3-head		4-head		LED light
